07.2017 | Music box

Becuase i recorded the video with my smartphone, the music itself have sound gaps. This happened, because the microphone of my smartphone is not able to record high tones. If you want to hear the song flawless, then try the music player below. The songs are recorded by an edirol device and encoded in flac.

I wanted to make a music box with my wife's favourite childhood songs. To finish the box, it took me about one year. To get all parts together and to write the atmega software. But finally the box can play several songs and it is also possible to skip songs. I added a noise generator to the play code, so that the songs will sound like a real old mechanical music box. I also made a small book that will list all songs available. Beneath i provide you with the songs recorded by my edirol recorder, and also some of the building steps in pictureated form.

All Songs of the box

Sorry for the bad quality and the background noise, there are some gaps in the music, because this recordings were made in a early version of my microcontroller code where the sd reading function did not work properly. I will make new recordings if i have time.

Omoide no album
Akatonbo
Yuyake Koyake
Amaririsu
Ichinensei ni Nattara
Okina Furudokei
Oborodukiyo
Furusato
Yuki
Yoki Usagi

I also made a small book provided next to the box with all songs in it.

Mini Book Mini Book Mini Book Mini Book Mini Book Mini Book Mini Book Mini Book

Building the music box

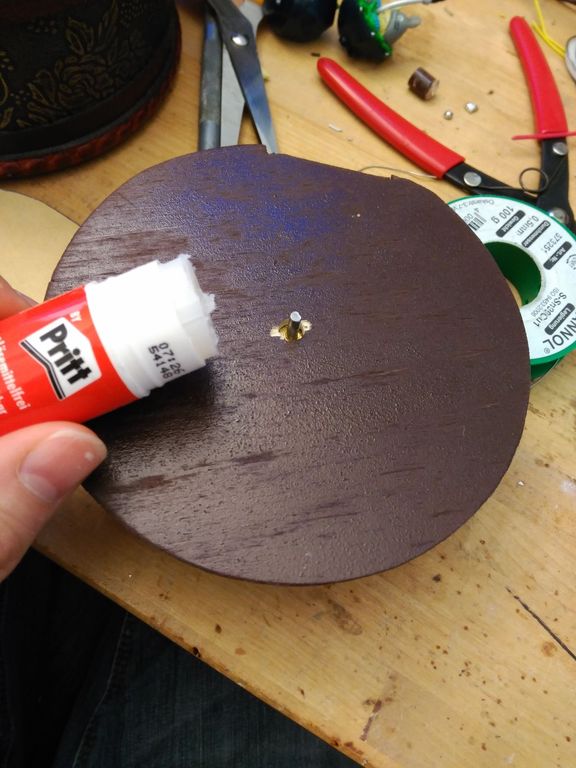

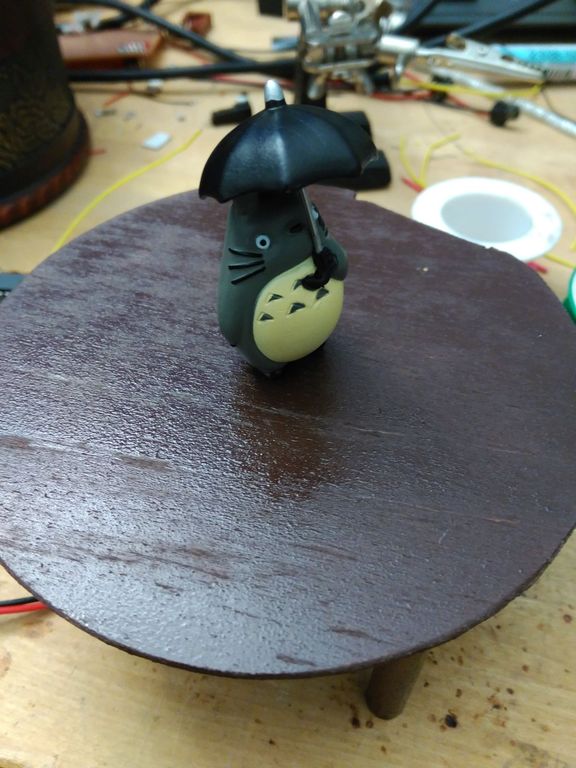

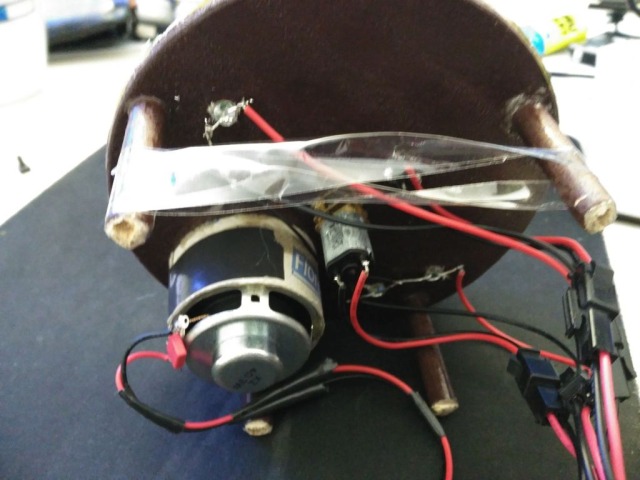

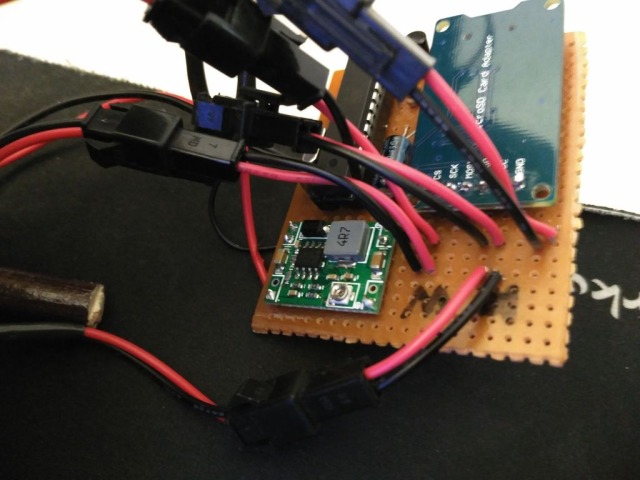

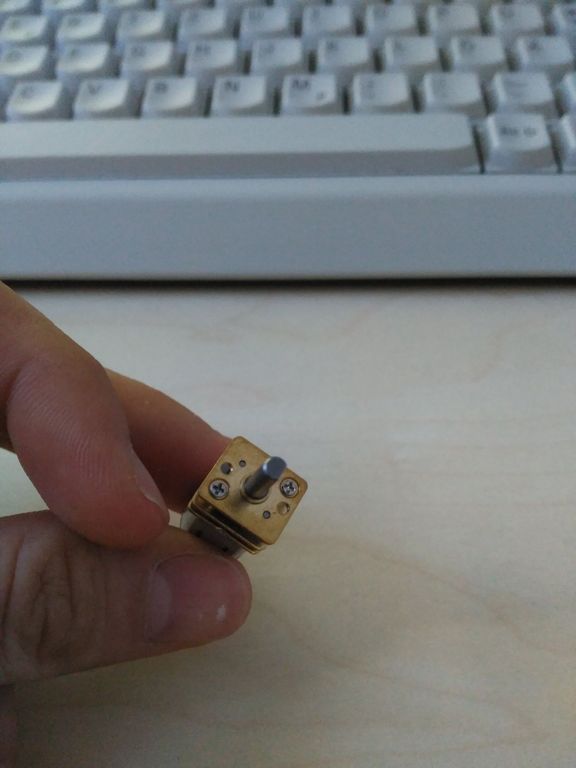

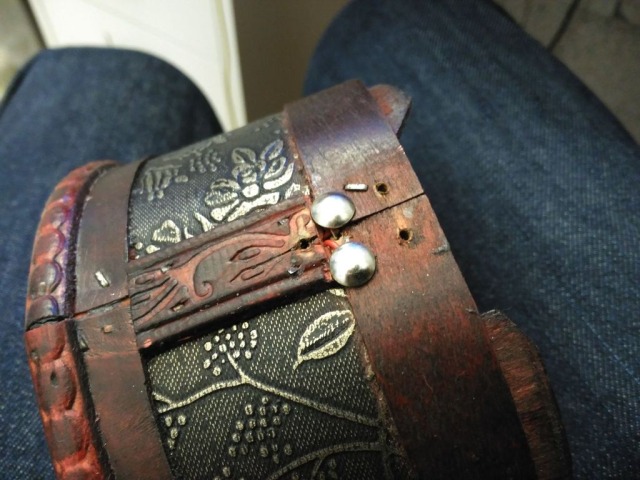

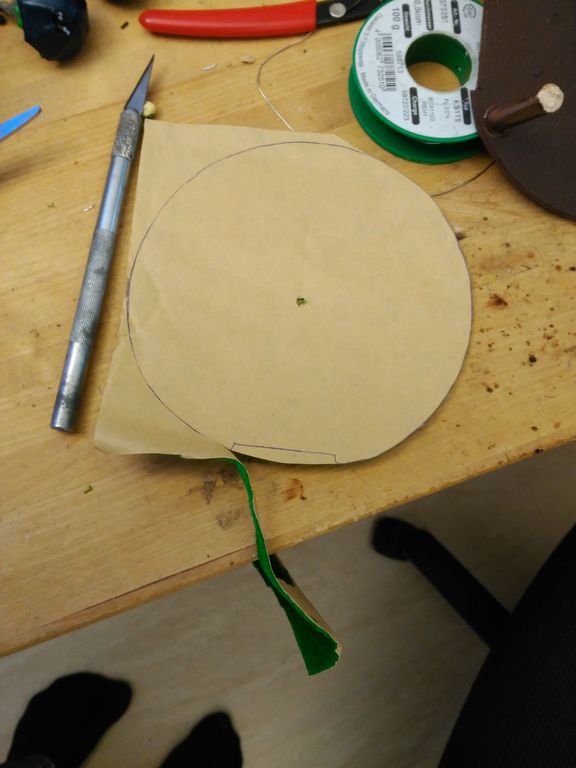

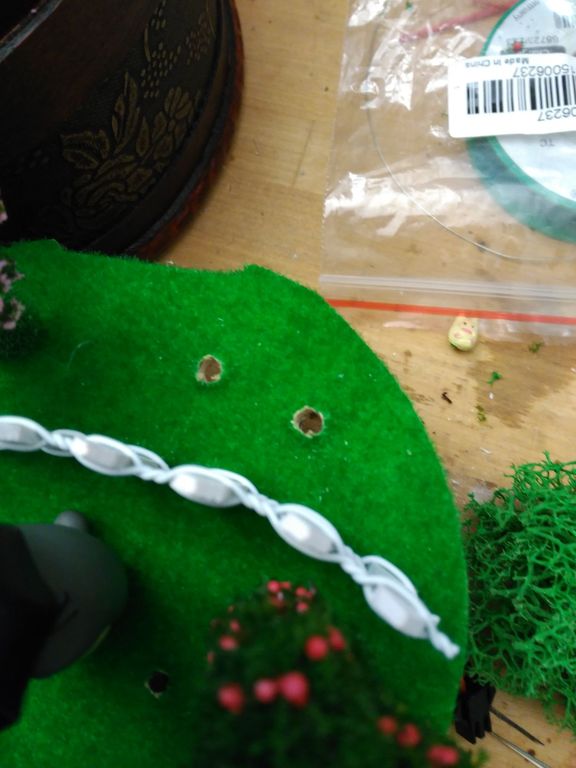

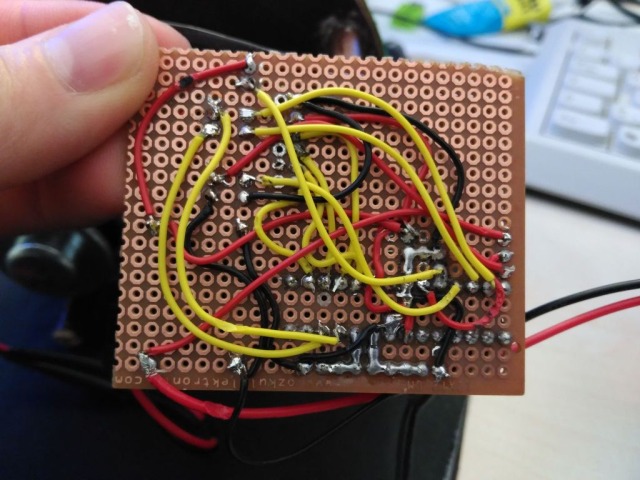

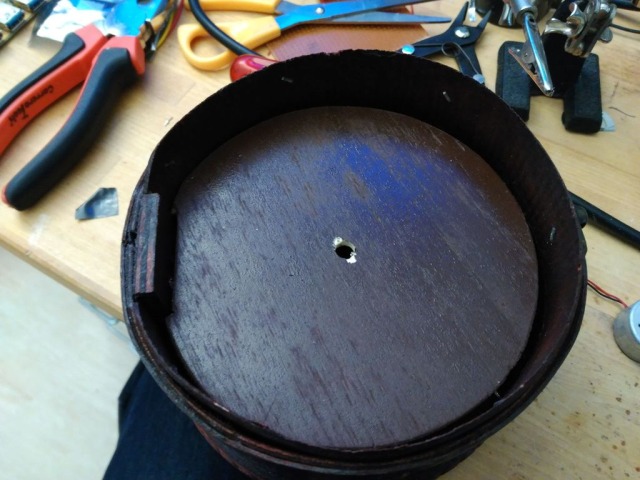

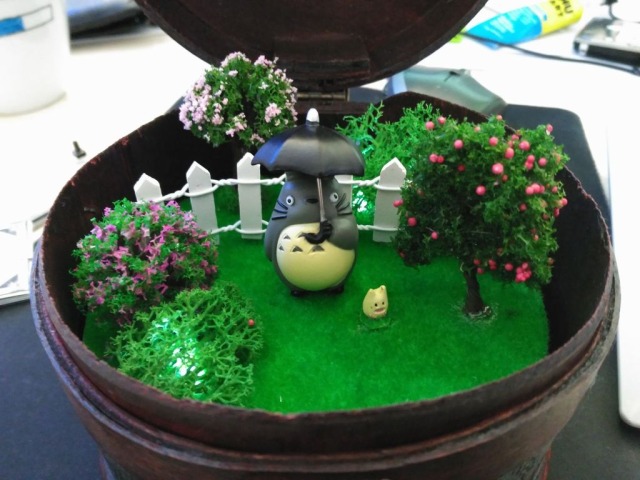

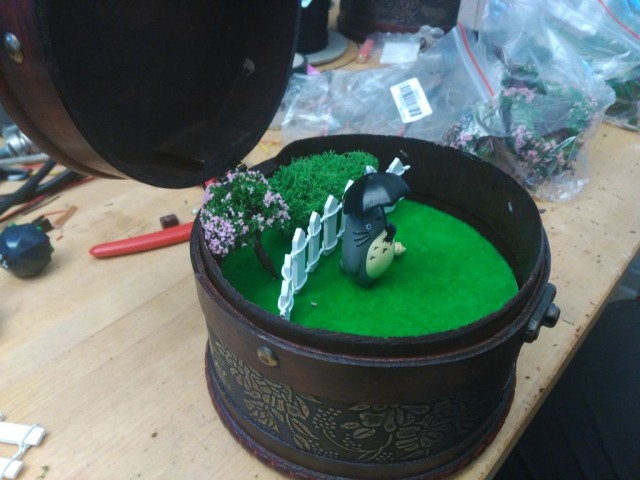

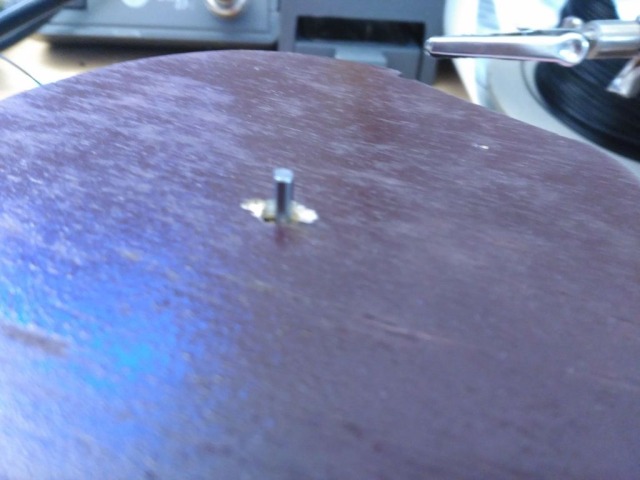

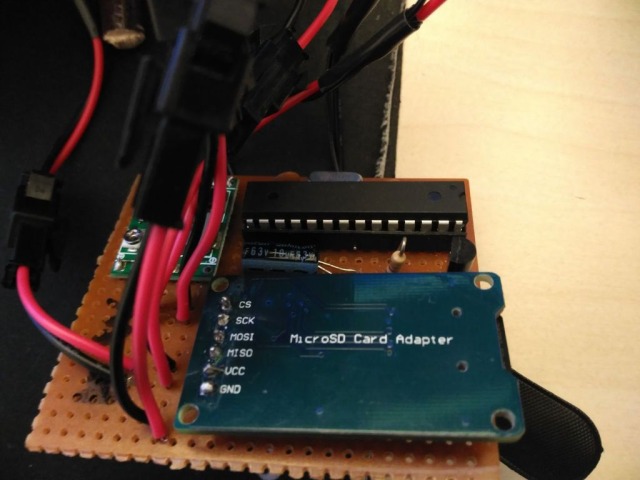

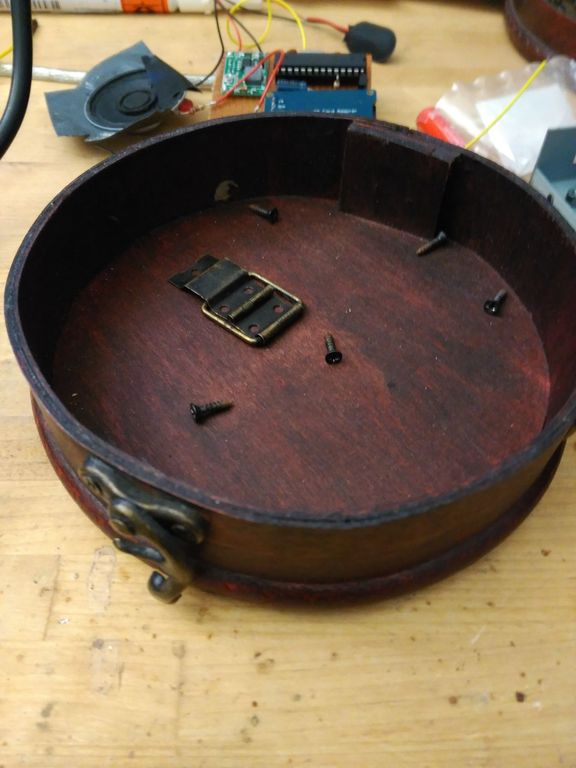

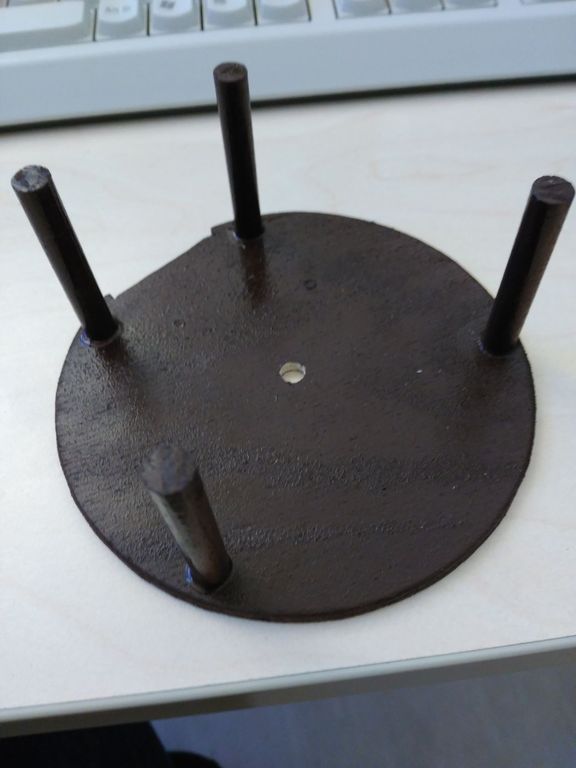

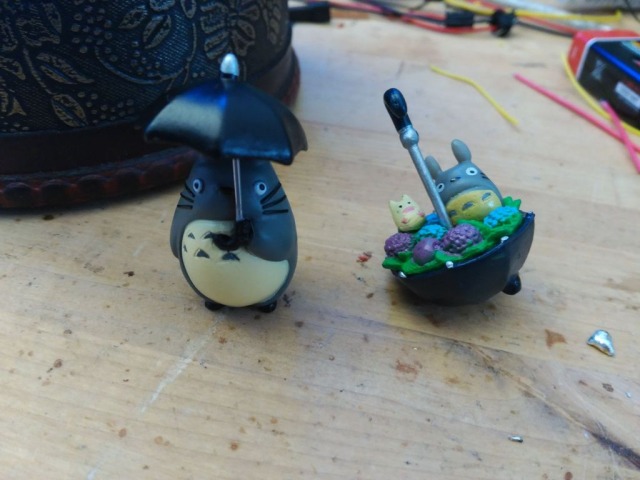

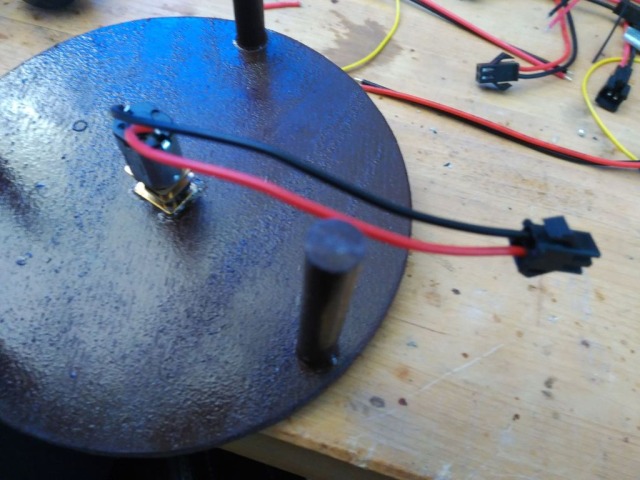

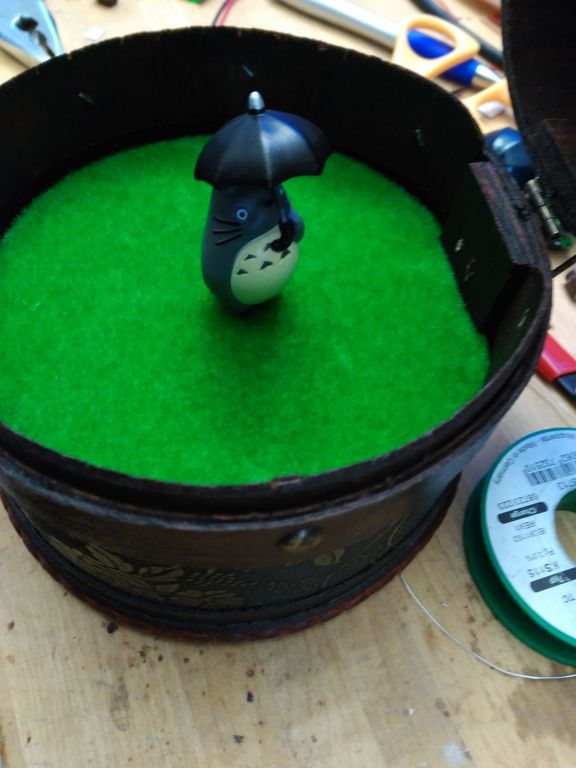

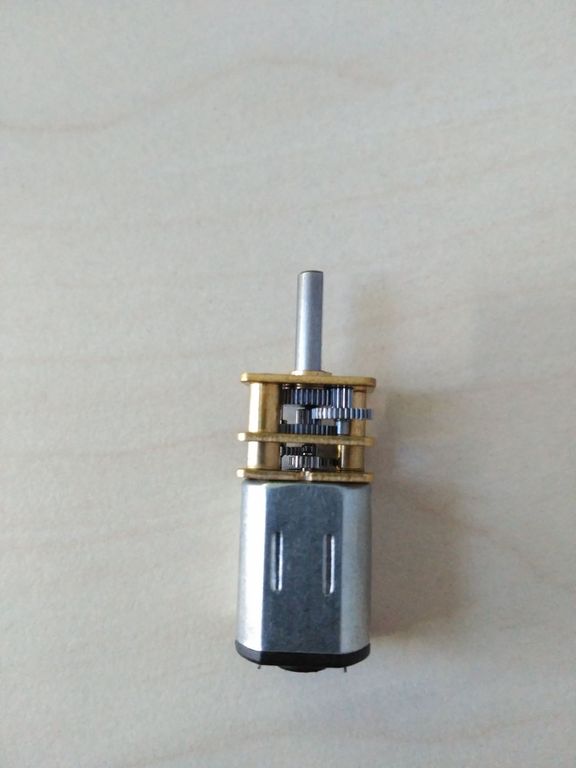

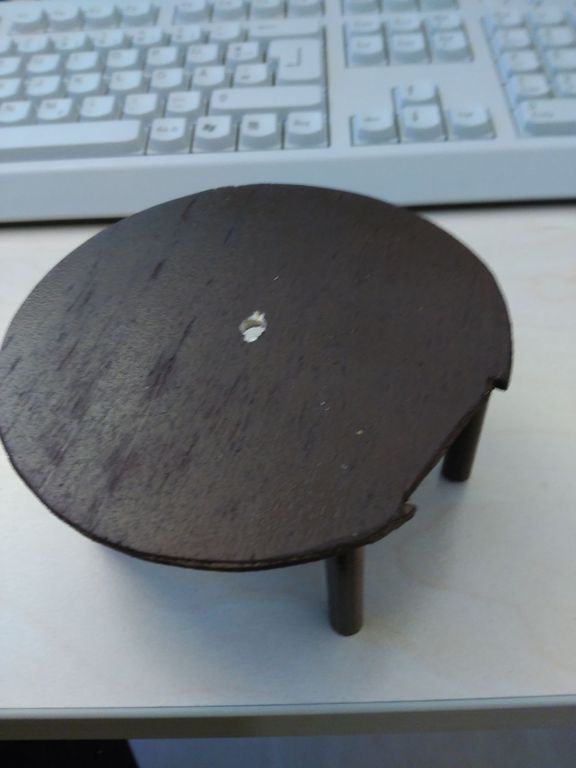

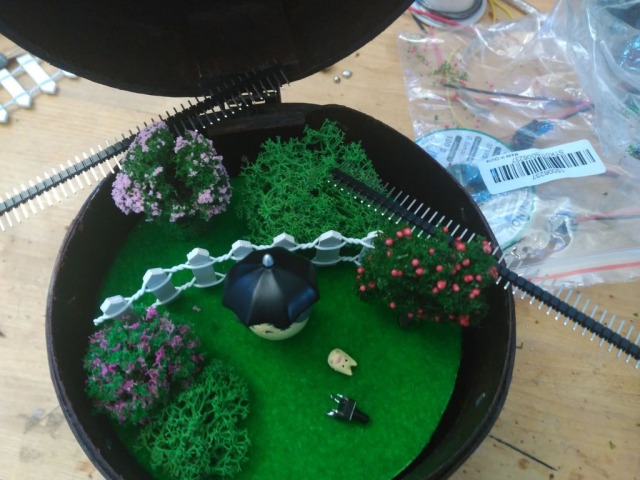

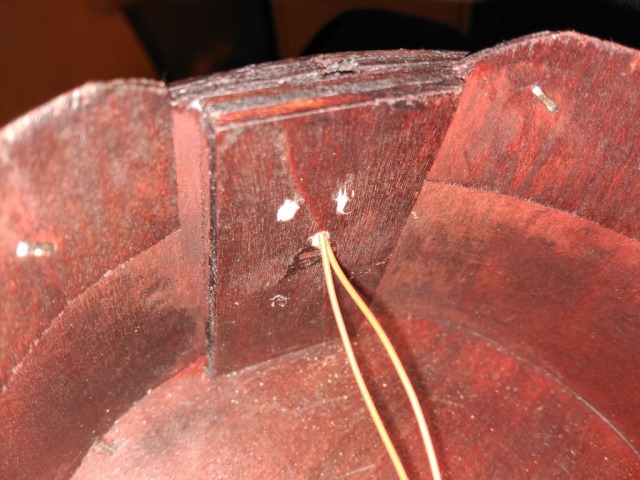

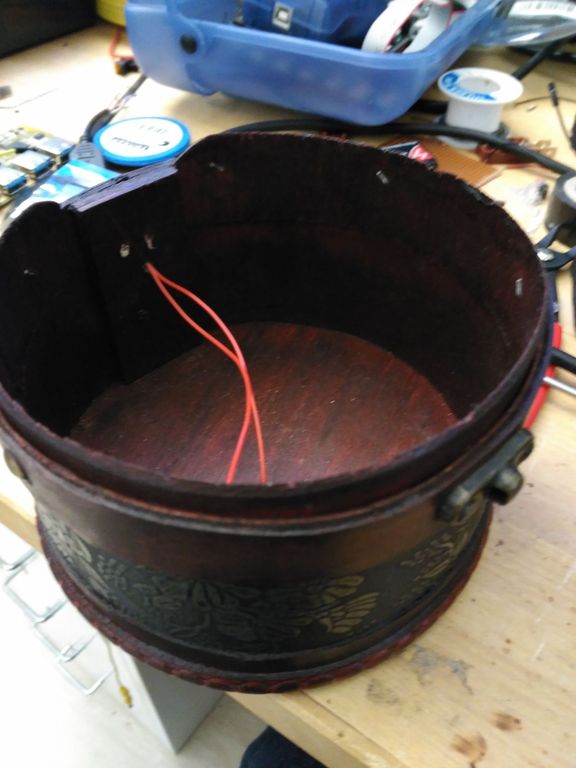

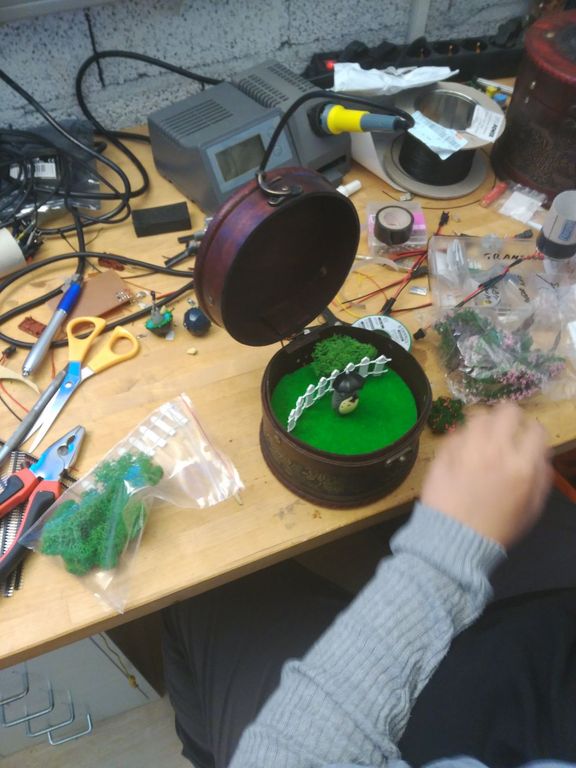

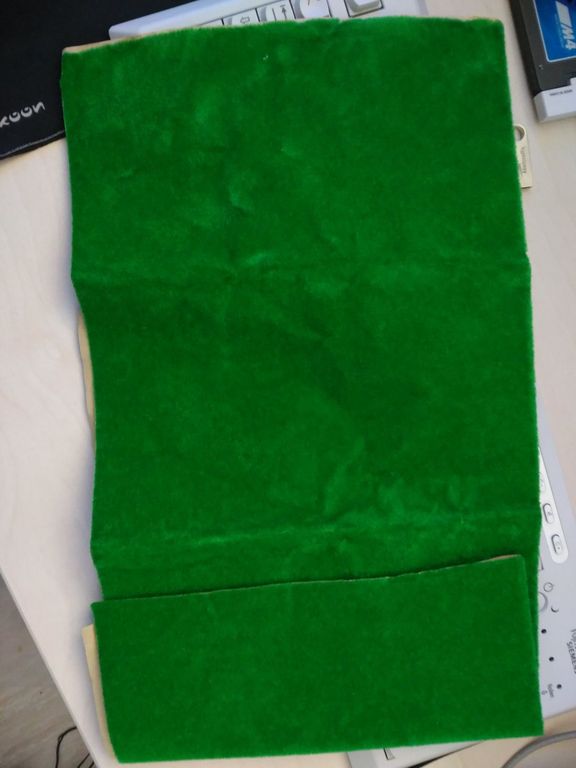

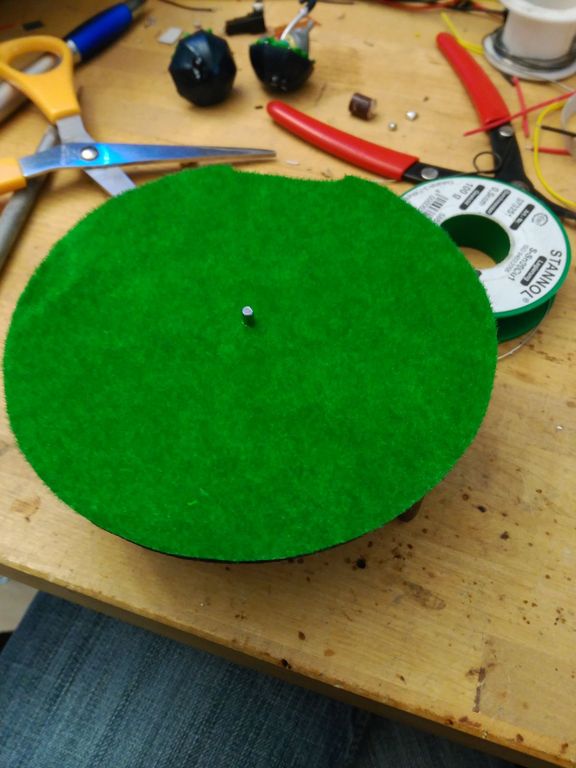

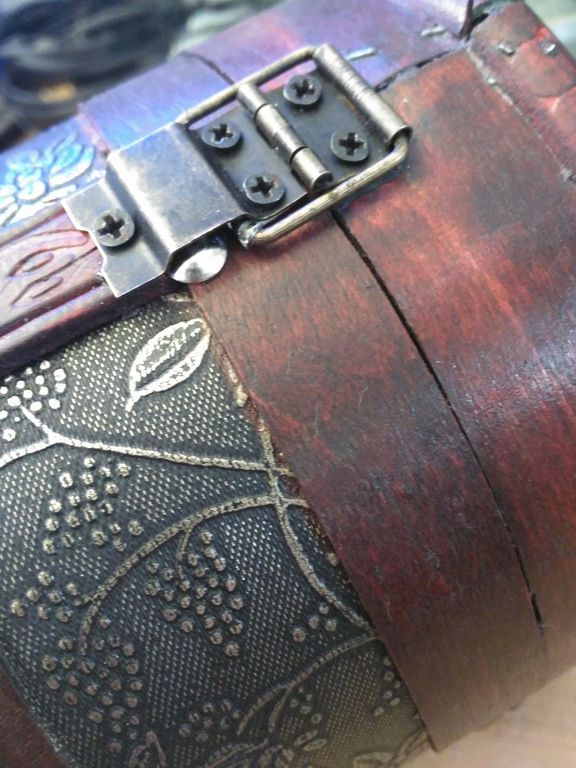

Raw wooden platform Raw wooden platform Raw wooden platform, fits in the case The motor that will finally rotate the figure The motor that will finally rotate the figure Motor mounted onto the platform Motor mounted onto the platform The different figures i used Figure mounted onto the motor and platform Artificial grass Cutting artificial grass Gluing platform Mounted grass on platform Mounted figure on platform and tested if it fits into the case Top of the case Added contacts to the case sor on off switching The cables are going into the case The cables are going into the case Mounted case together again A friends helped to arrange all items on the platform Platform raw view I wanted to add a switch for next song playback to the platform Mounted switch to the back of the platform Made holes for LEDs Everything in place and mounted The complete pack with all electronics The circuit board from the back The circuit board from the front The circuit board from the front
